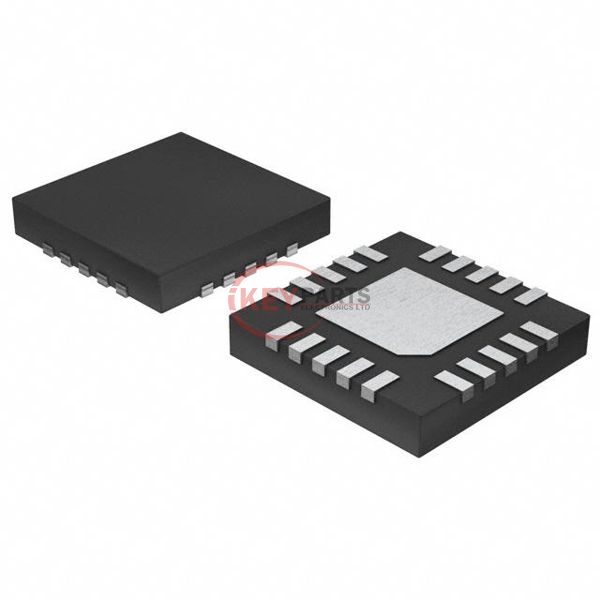

MAX16814CATP+T

Enlarger

Lmages are for reference only See Product Specitications

Maxim Integrated MAX16814CATP+T

Manufacturer :
Maxim Integrated
Mfr. Part # :
MAX16814CATP+T
Description
IC LED DVR 4CH DC-DC 20TSSOP
Catalog
PMIC - LED Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MAX16814CATP+T PDF
MAX16814CATP+T Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
TypeDC DC Controller
TopologySEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s)No
Number of Outputs4
Voltage - Supply (Min)4.75V
Voltage - Supply (Max)40V
Voltage - Output-
Current - Output / Channel150mA
Frequency200kHz ~ 2MHz
DimmingPWM
ApplicationsBacklight, Lighting
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case20-WFQFN Exposed Pad
Supplier Device Package20-TQFN (4x4)
Request Quote Now
Request Quote Now

We can supply MAX16814CATP+T, use the request quote form to request MAX16814CATP+T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MAX16814CATP+T. The price and lead time for MAX16814CATP+T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MAX16814CATP+T. We look forward to working with you to establish long-term relations of cooperation.
