DMN2300UFL4-7

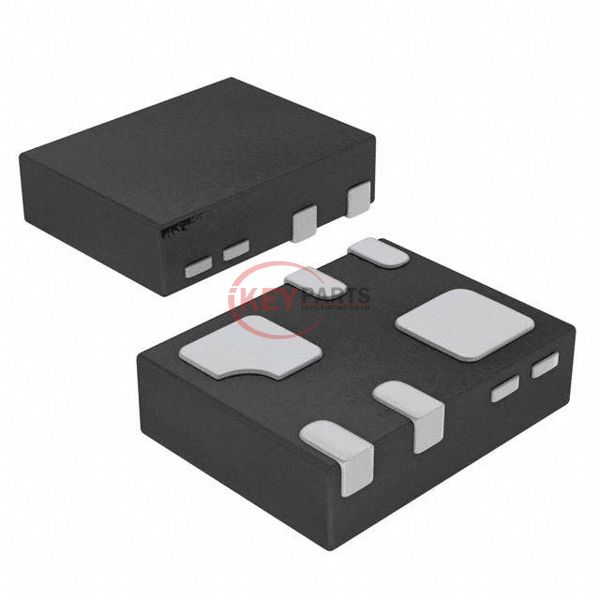

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN2300UFL4-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN2300UFL4-7
Description
MOSFET 2N-CH 20V 2.11A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN2300UFL4-7 PDF
DMN2300UFL4-7 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.11A (Ta)
Rds On (Max) @ Id, Vgs195mOhm @ 300mA, 4.5V
Vgs(th) (Max) @ Id950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds128.6pF @ 25V
Power - Max1.39W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFDFN Exposed Pad
Supplier Device PackageX2-DFN1310-6 (Type B)
Request Quote Now
Request Quote Now

We can supply DMN2300UFL4-7, use the request quote form to request DMN2300UFL4-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN2300UFL4-7. The price and lead time for DMN2300UFL4-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN2300UFL4-7. We look forward to working with you to establish long-term relations of cooperation.
