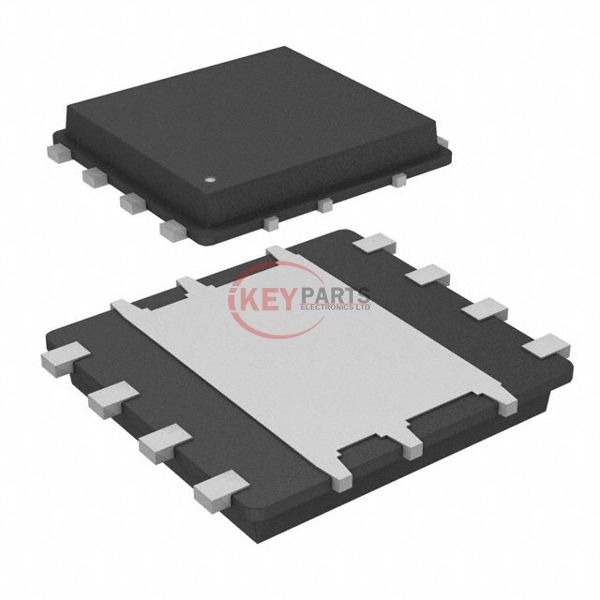

AON6810

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON6810

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON6810
Description
MOSFET 2N-CH 30V 25A 8-DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON6810 PDF
In Stock
962
AON6810 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C25A
Rds On (Max) @ Id, Vgs4.4mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs34nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1720pF @ 15V
Power - Max4.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead Exposed Pad
Supplier Device Package8-DFN-EP (5.2x5.55)
Request Quote Now
Request Quote Now

We can supply AON6810, use the request quote form to request AON6810 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON6810. The price and lead time for AON6810 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON6810. We look forward to working with you to establish long-term relations of cooperation.
