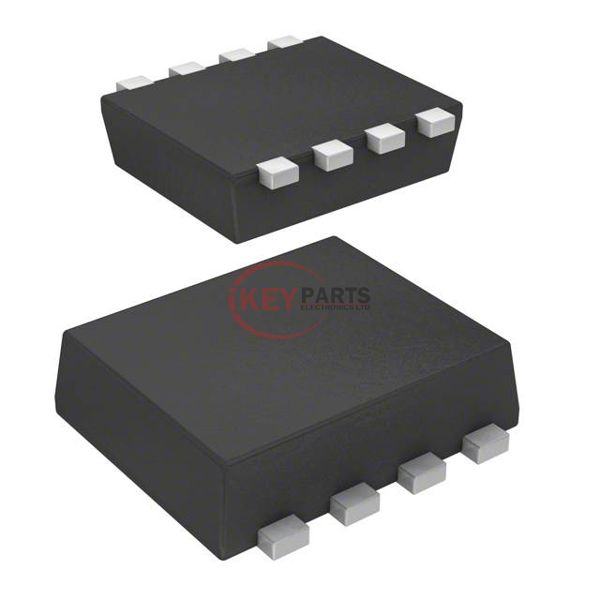

AON3814

Enlarger

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON3814

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON3814
Description
MOSFET 2N-CH 20V 6A 8DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON3814 PDF
In Stock
503
AON3814 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C-
Rds On (Max) @ Id, Vgs17mOhm @ 6A, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1100pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device Package8-DFN (2.9x2.3)
Request Quote Now
Request Quote Now

We can supply AON3814, use the request quote form to request AON3814 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON3814. The price and lead time for AON3814 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON3814. We look forward to working with you to establish long-term relations of cooperation.
