NTLJD3119CTBG

Enlarger

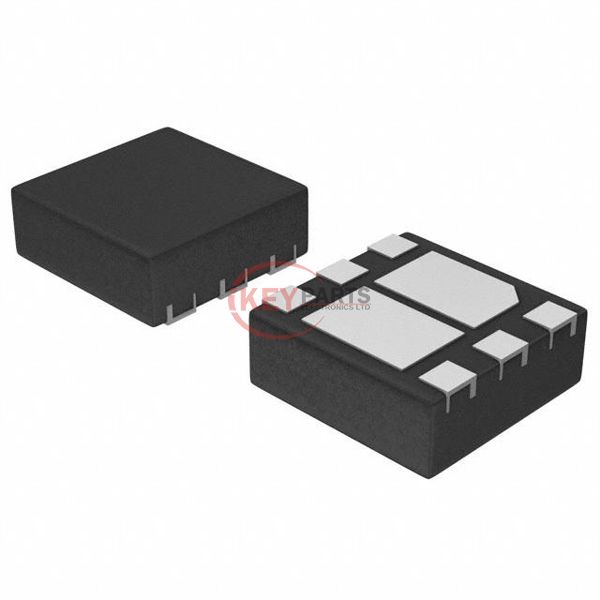

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLJD3119CTBG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLJD3119CTBG
Description
MOSFET N/P-CH 20V 6WDFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLJD3119CTBG PDF
In Stock
713
NTLJD3119CTBG Tech Specifications
SeriesµCool™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.6A, 2.3A
Rds On (Max) @ Id, Vgs65mOhm @ 3.8A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.7nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds271pF @ 10V
Power - Max710mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WDFN (2x2)
Request Quote Now
Request Quote Now

We can supply NTLJD3119CTBG, use the request quote form to request NTLJD3119CTBG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLJD3119CTBG. The price and lead time for NTLJD3119CTBG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLJD3119CTBG. We look forward to working with you to establish long-term relations of cooperation.
