UPA503T-T2-A

Enlarger

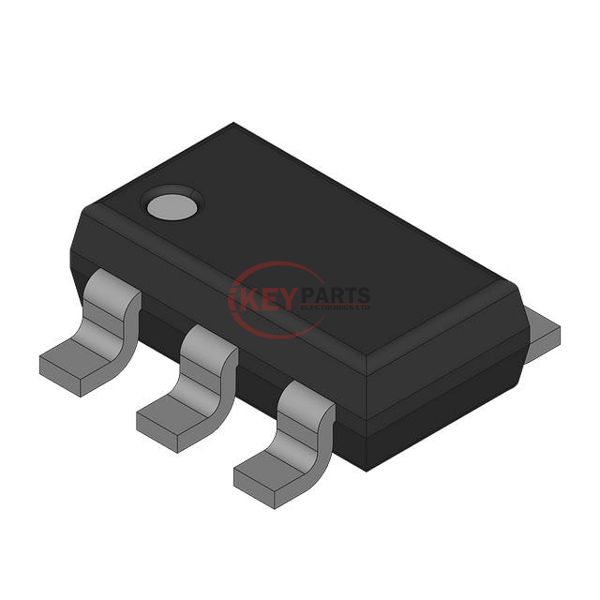

Lmages are for reference only See Product Specitications

Rochester Electronics UPA503T-T2-A

Manufacturer :
Rochester Electronics
Mfr. Part # :
UPA503T-T2-A
Description
SMALL SIGNAL P-CHANNEL MOSFET
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UPA503T-T2-A PDF
UPA503T-T2-A Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET Type2 P-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)50V
Current - Continuous Drain (Id) @ 25°C100mA
Rds On (Max) @ Id, Vgs60Ohm @ 10mA, 10V
Vgs(th) (Max) @ Id2.5V @ 1µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds17pF @ 5V
Power - Max300mW
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSC-59-5, Mini Mold
Request Quote Now
Request Quote Now

We can supply UPA503T-T2-A, use the request quote form to request UPA503T-T2-A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UPA503T-T2-A. The price and lead time for UPA503T-T2-A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UPA503T-T2-A. We look forward to working with you to establish long-term relations of cooperation.
