CSD85312Q3E

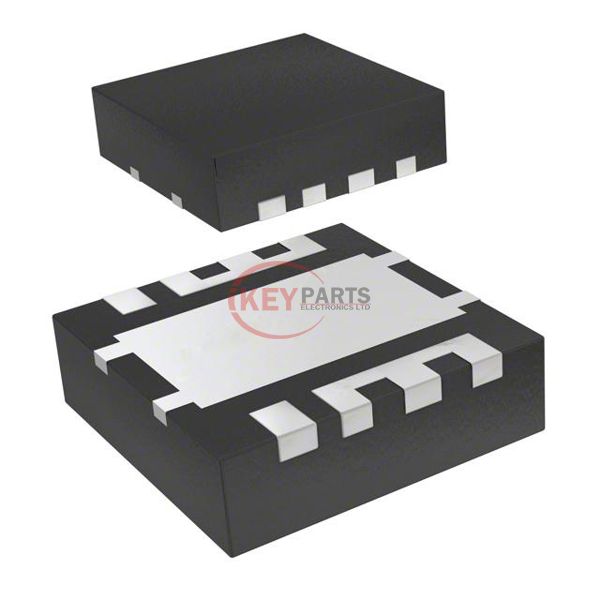

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD85312Q3E

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD85312Q3E
Description
MOSFET 2N-CH 20V 39A 8VSON
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD85312Q3E PDF
CSD85312Q3E Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual) Common Source
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C39A
Rds On (Max) @ Id, Vgs12.4mOhm @ 10A, 8V
Vgs(th) (Max) @ Id1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds2390pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device Package8-VSON (3.3x3.3)
Request Quote Now
Request Quote Now

We can supply CSD85312Q3E, use the request quote form to request CSD85312Q3E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD85312Q3E. The price and lead time for CSD85312Q3E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD85312Q3E. We look forward to working with you to establish long-term relations of cooperation.
