AON5820

Enlarger

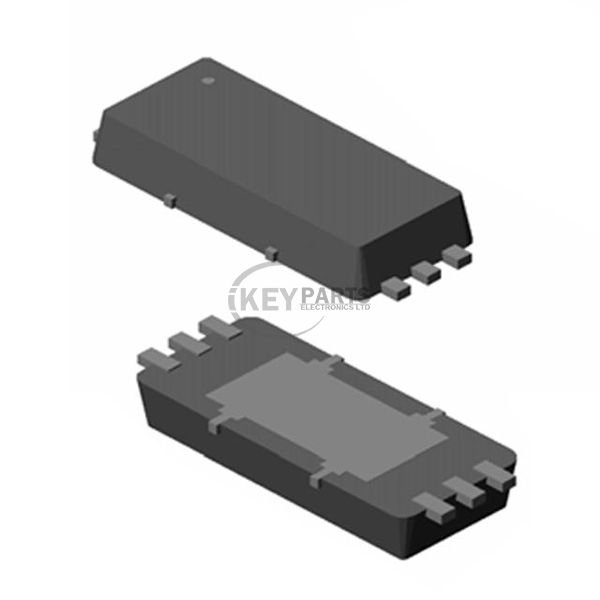

Lmages are for reference only See Product Specitications

Alpha and Omega Semiconductor, Inc. AON5820

Manufacturer :
Alpha and Omega Semiconductor, Inc.
Mfr. Part # :
AON5820
Description
MOSFET 2N-CH 20V 10A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AON5820 PDF
In Stock
422
AON5820 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs9.5mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1510pF @ 10V
Power - Max1.7W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-SMD, Flat Lead Exposed Pad
Supplier Device Package6-DFN-EP (2x5)
Request Quote Now
Request Quote Now

We can supply AON5820, use the request quote form to request AON5820 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AON5820. The price and lead time for AON5820 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AON5820. We look forward to working with you to establish long-term relations of cooperation.
