BSZ15DC02KDHXTMA1

Enlarger

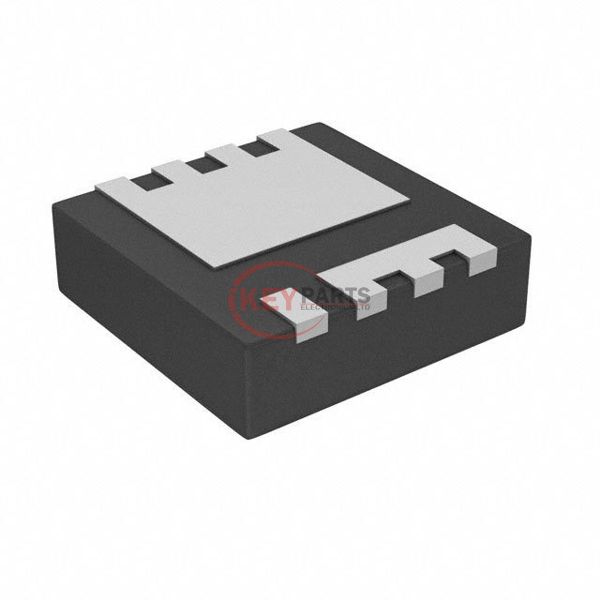

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSZ15DC02KDHXTMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSZ15DC02KDHXTMA1
Description
MOSFET N/P-CH 20V 5.1/3.2A TDSON
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSZ15DC02KDHXTMA1 PDF
BSZ15DC02KDHXTMA1 Tech Specifications
SeriesAutomotive, AEC-Q101, HEXFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel Complementary
FET FeatureLogic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C5.1A, 3.2A
Rds On (Max) @ Id, Vgs55mOhm @ 5.1A, 4.5V
Vgs(th) (Max) @ Id1.4V @ 110µA
Gate Charge (Qg) (Max) @ Vgs2.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds419pF @ 10V
Power - Max2.5W
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePG-TSDSON-8-FL
Request Quote Now
Request Quote Now

We can supply BSZ15DC02KDHXTMA1, use the request quote form to request BSZ15DC02KDHXTMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSZ15DC02KDHXTMA1. The price and lead time for BSZ15DC02KDHXTMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSZ15DC02KDHXTMA1. We look forward to working with you to establish long-term relations of cooperation.
