HP8K22TB

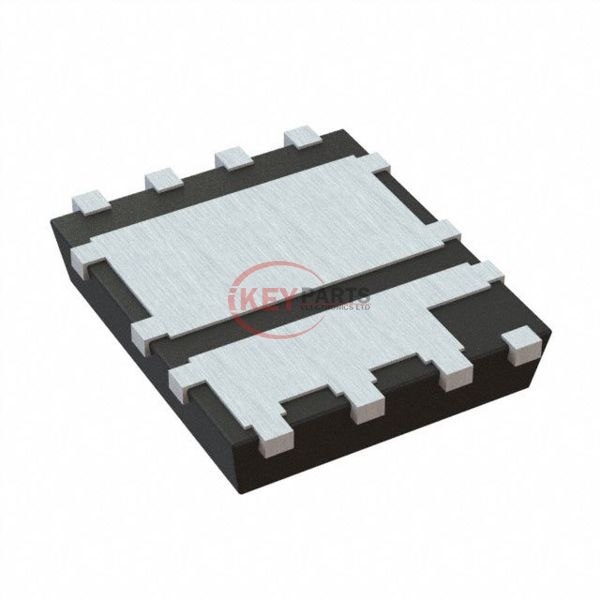

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor HP8K22TB

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
HP8K22TB
Description
30V NCH+NCH MID POWER MOSFET
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
HP8K22TB PDF
In Stock
5915
HP8K22TB Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET Feature-
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C27A, 57A
Rds On (Max) @ Id, Vgs4.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs16.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1080pF @ 15V
Power - Max25W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-HSOP
Request Quote Now
Request Quote Now

We can supply HP8K22TB, use the request quote form to request HP8K22TB pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HP8K22TB. The price and lead time for HP8K22TB depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HP8K22TB. We look forward to working with you to establish long-term relations of cooperation.
