PMGD290UCEAX

Enlarger

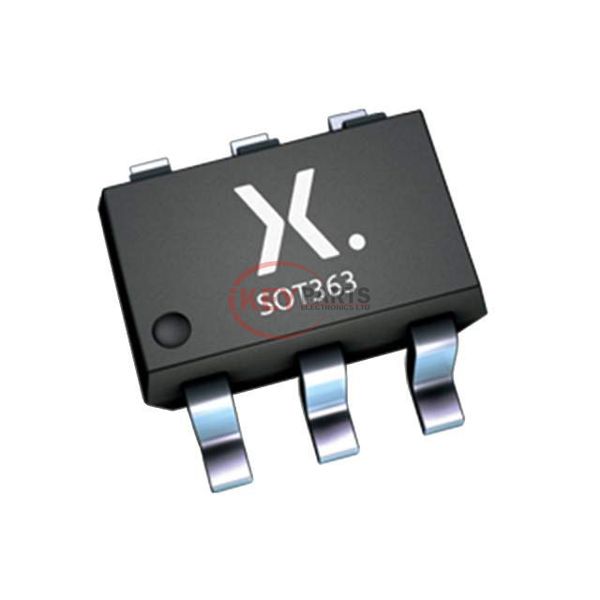

Lmages are for reference only See Product Specitications

Nexperia PMGD290UCEAX

Manufacturer :
Nexperia
Mfr. Part # :
PMGD290UCEAX
Description
MOSFET N/P-CH 20V 6TSSOP
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMGD290UCEAX PDF
In Stock
24562
PMGD290UCEAX Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C725mA, 500mA
Rds On (Max) @ Id, Vgs380mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.68nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds83pF @ 10V
Power - Max280mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device Package6-TSSOP
Request Quote Now
Request Quote Now

We can supply PMGD290UCEAX, use the request quote form to request PMGD290UCEAX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMGD290UCEAX. The price and lead time for PMGD290UCEAX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMGD290UCEAX. We look forward to working with you to establish long-term relations of cooperation.
