CSD86360Q5D

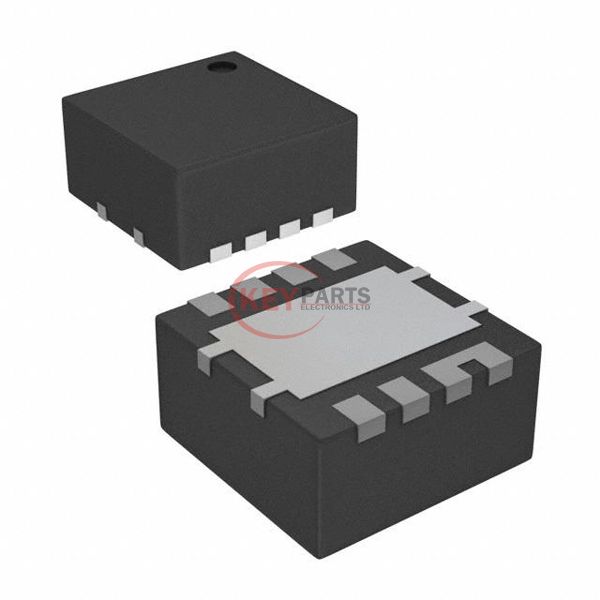

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD86360Q5D

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD86360Q5D
Description
MOSFET 2N-CH 25V 50A 8SON
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD86360Q5D PDF
In Stock
2653
CSD86360Q5D Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C50A
Rds On (Max) @ Id, Vgs-
Vgs(th) (Max) @ Id2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds2060pF @ 12.5
Power - Max13W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerLDFN
Supplier Device Package8-LSON (5x6)
Request Quote Now
Request Quote Now

We can supply CSD86360Q5D, use the request quote form to request CSD86360Q5D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD86360Q5D. The price and lead time for CSD86360Q5D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD86360Q5D. We look forward to working with you to establish long-term relations of cooperation.
