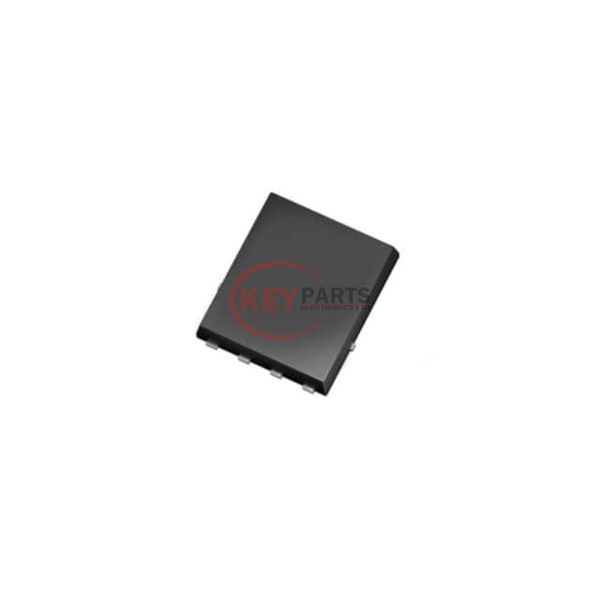

IPG20N04S409ATMA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) IPG20N04S409ATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
IPG20N04S409ATMA1
Description
MOSFET N-CHANNEL_30/40V
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPG20N04S409ATMA1 PDF
IPG20N04S409ATMA1 Tech Specifications
SeriesAutomotive, AEC-Q101, OptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C20A (Tc)
Rds On (Max) @ Id, Vgs8.6mOhm @ 17A, 10V
Vgs(th) (Max) @ Id4V @ 22µA
Gate Charge (Qg) (Max) @ Vgs28nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds2250pF @ 25V
Power - Max54W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePG-TDSON-8-10
Request Quote Now
Request Quote Now

We can supply IPG20N04S409ATMA1, use the request quote form to request IPG20N04S409ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPG20N04S409ATMA1. The price and lead time for IPG20N04S409ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPG20N04S409ATMA1. We look forward to working with you to establish long-term relations of cooperation.
