NTLJD3115PT1G

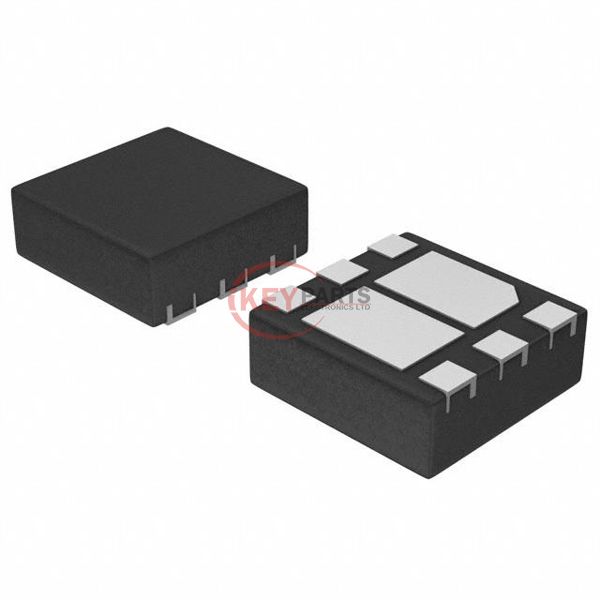

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor NTLJD3115PT1G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
NTLJD3115PT1G
Description
MOSFET 2P-CH 20V 2.3A 6-WDFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTLJD3115PT1G PDF
NTLJD3115PT1G Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 P-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C2.3A
Rds On (Max) @ Id, Vgs100mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds531pF @ 10V
Power - Max710mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WDFN Exposed Pad
Supplier Device Package6-WDFN (2x2)
Request Quote Now
Request Quote Now

We can supply NTLJD3115PT1G, use the request quote form to request NTLJD3115PT1G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTLJD3115PT1G. The price and lead time for NTLJD3115PT1G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTLJD3115PT1G. We look forward to working with you to establish long-term relations of cooperation.
