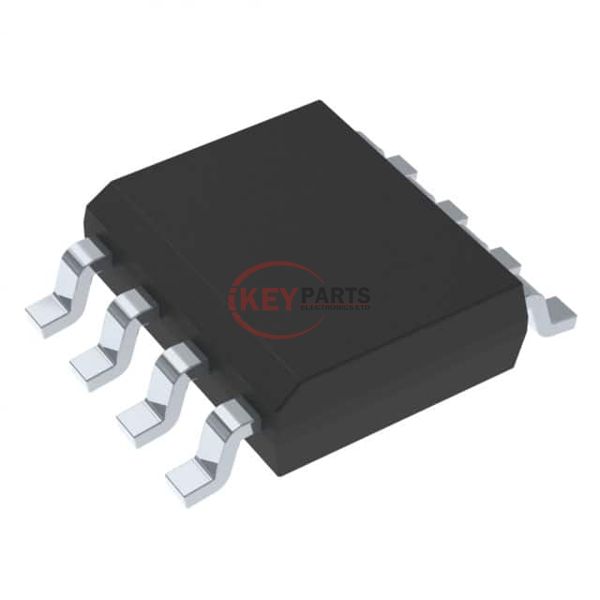

TSM8568CS RLG

Enlarger

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM8568CS RLG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM8568CS RLG
Description
MOSFET N/P-CH 30V 15A/13A 8SOP
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM8568CS RLG PDF
TSM8568CS RLG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C15A (Tc), 13A (Tc)
Rds On (Max) @ Id, Vgs16mOhm @ 8A, 10V, 24mOhm @ 7A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7nC @ 4.5V, 11nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds646pF @ 15V, 1089pF @ 15V
Power - Max6W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOP
Request Quote Now
Request Quote Now

We can supply TSM8568CS RLG, use the request quote form to request TSM8568CS RLG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM8568CS RLG. The price and lead time for TSM8568CS RLG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM8568CS RLG. We look forward to working with you to establish long-term relations of cooperation.
