ECH8697R-TL-W

Enlarger

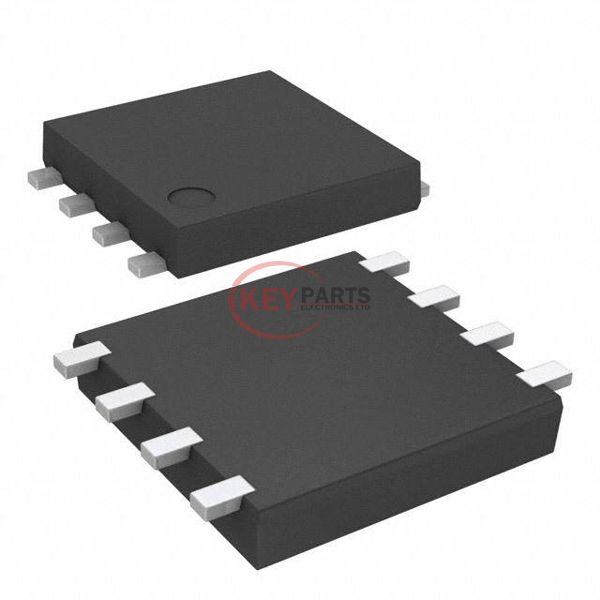

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor ECH8697R-TL-W

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
ECH8697R-TL-W
Description
MOSFET 2N-CH 24V 10A SOT28
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECH8697R-TL-W PDF
ECH8697R-TL-W Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25°C10A
Rds On (Max) @ Id, Vgs11.6mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds-
Power - Max1.5W
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SMD, Flat Lead
Supplier Device PackageSOT-28FL/ECH8
Request Quote Now
Request Quote Now

We can supply ECH8697R-TL-W, use the request quote form to request ECH8697R-TL-W pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECH8697R-TL-W. The price and lead time for ECH8697R-TL-W depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECH8697R-TL-W. We look forward to working with you to establish long-term relations of cooperation.
