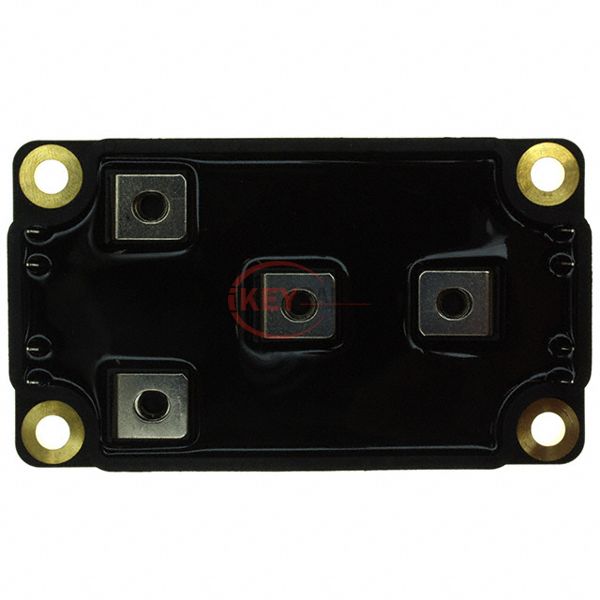

APTM120H29FG

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology APTM120H29FG

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
APTM120H29FG
Description
MOSFET 4N-CH 1200V 34A SP6
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
APTM120H29FG PDF
APTM120H29FG Tech Specifications
SeriesPOWER MOS 7®
PackageBulk
Part StatusActive
FET Type4 N-Channel (H-Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C34A
Rds On (Max) @ Id, Vgs348mOhm @ 17A, 10V
Vgs(th) (Max) @ Id5V @ 5mA
Gate Charge (Qg) (Max) @ Vgs374nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds10300pF @ 25V
Power - Max780W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseSP6
Supplier Device PackageSP6
Request Quote Now
Request Quote Now

We can supply APTM120H29FG, use the request quote form to request APTM120H29FG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTM120H29FG. The price and lead time for APTM120H29FG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTM120H29FG. We look forward to working with you to establish long-term relations of cooperation.
