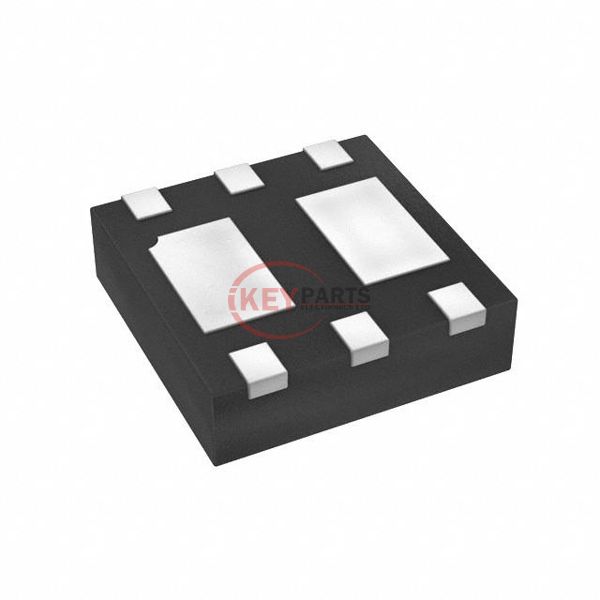

DMN2025UFDB-13

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMN2025UFDB-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMN2025UFDB-13
Description
MOSFET BVDSS: 8V-24V U-DFN2020-6
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMN2025UFDB-13 PDF
In Stock
711
DMN2025UFDB-13 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C6A (Ta)
Rds On (Max) @ Id, Vgs25mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds486pF @ 10V
Power - Max700mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-UDFN Exposed Pad
Supplier Device PackageU-DFN2020-6 (Type B)
Request Quote Now
Request Quote Now

We can supply DMN2025UFDB-13, use the request quote form to request DMN2025UFDB-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMN2025UFDB-13. The price and lead time for DMN2025UFDB-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMN2025UFDB-13. We look forward to working with you to establish long-term relations of cooperation.
