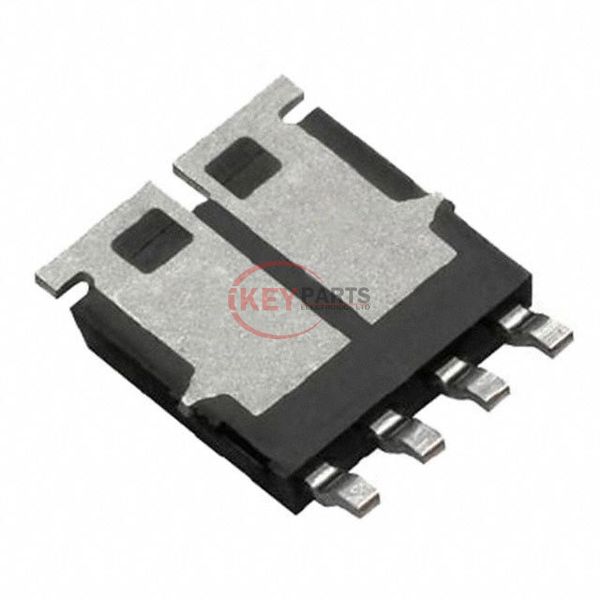

SQJ560EP-T1_GE3

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SQJ560EP-T1_GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SQJ560EP-T1_GE3
Description
MOSFET DUAL N P CH 60V PPAK SO-8
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SQJ560EP-T1_GE3 PDF
SQJ560EP-T1_GE3 Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C30A (Tc), 18A (Tc)
Rds On (Max) @ Id, Vgs12mOhm @ 10A, 10V, 52.6mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30nC @ 10V, 45nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1650pF @ 25V
Power - Max34W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Package / CasePowerPAK® SO-8 Dual
Supplier Device PackagePowerPAK® SO-8 Dual
Request Quote Now
Request Quote Now

We can supply SQJ560EP-T1_GE3, use the request quote form to request SQJ560EP-T1_GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SQJ560EP-T1_GE3. The price and lead time for SQJ560EP-T1_GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SQJ560EP-T1_GE3. We look forward to working with you to establish long-term relations of cooperation.
