CSD86336Q3D

Enlarger

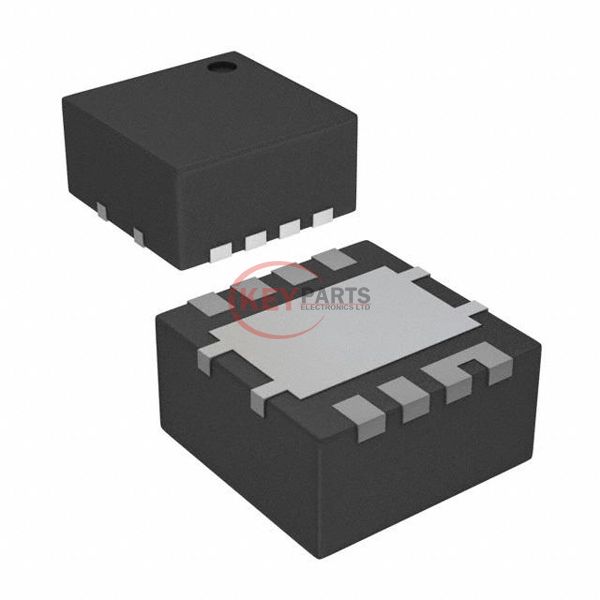

Lmages are for reference only See Product Specitications

Texas Instruments CSD86336Q3D

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD86336Q3D
Description
25V POWERBLOCK N CH MOSFET
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD86336Q3D PDF
CSD86336Q3D Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureLogic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C20A (Ta)
Rds On (Max) @ Id, Vgs9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V
Vgs(th) (Max) @ Id1.9V @ 250µA, 1.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3.8nC @ 45V, 7.4nC @ 45V
Input Capacitance (Ciss) (Max) @ Vds494pF @ 12.5V, 970pF @ 12.5V
Power - Max6W
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device Package8-VSON (3.3x3.3)
Request Quote Now
Request Quote Now

We can supply CSD86336Q3D, use the request quote form to request CSD86336Q3D pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD86336Q3D. The price and lead time for CSD86336Q3D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD86336Q3D. We look forward to working with you to establish long-term relations of cooperation.
