ZXMC4559DN8TC

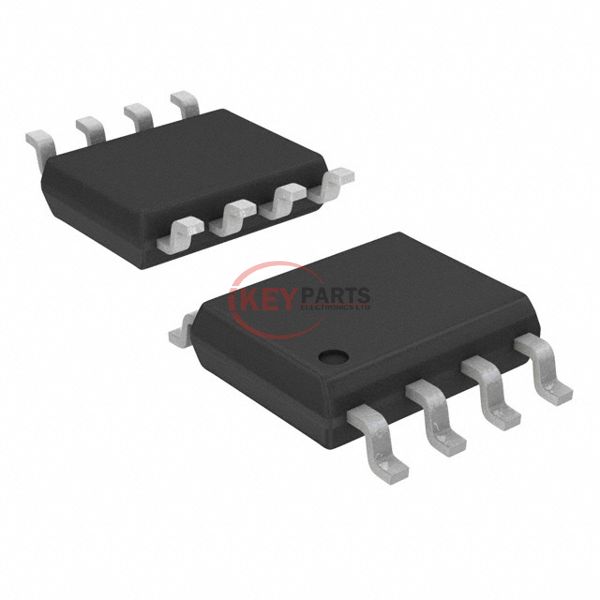

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXMC4559DN8TC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXMC4559DN8TC
Description
MOSFET N/P-CH 60V 3.6A/2.6A 8SO
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXMC4559DN8TC PDF
ZXMC4559DN8TC Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C3.6A, 2.6A
Rds On (Max) @ Id, Vgs55mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs20.4nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1063pF @ 30V
Power - Max2.1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SO
Request Quote Now
Request Quote Now

We can supply ZXMC4559DN8TC, use the request quote form to request ZXMC4559DN8TC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXMC4559DN8TC. The price and lead time for ZXMC4559DN8TC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXMC4559DN8TC. We look forward to working with you to establish long-term relations of cooperation.
