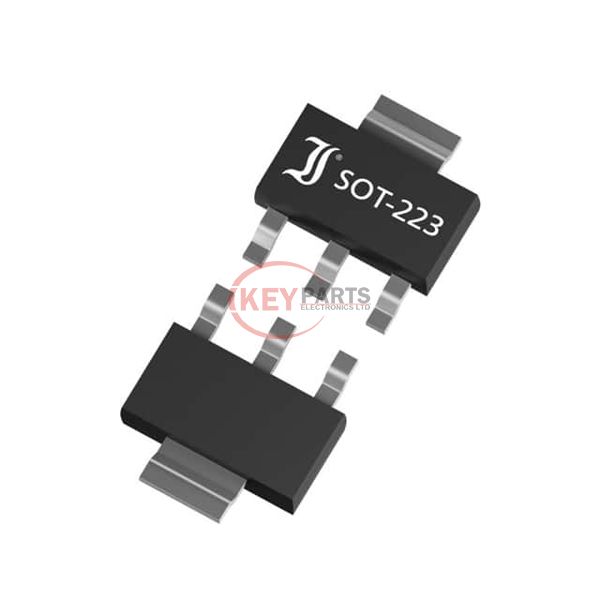

BCP56-10

Enlarger

Lmages are for reference only See Product Specitications

Diotec Semiconductor BCP56-10

Manufacturer :
Diotec Semiconductor
Mfr. Part # :
BCP56-10
Description
BJT SOT-223 80V 1000MA
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BCP56-10 PDF
In Stock
665
BCP56-10 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce63 @ 150mA, 2V
Power - Max2 W
Frequency - Transition100MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-261-4, TO-261AA
Supplier Device PackageSOT-223
Request Quote Now
Request Quote Now

We can supply BCP56-10, use the request quote form to request BCP56-10 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BCP56-10. The price and lead time for BCP56-10 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BCP56-10. We look forward to working with you to establish long-term relations of cooperation.
