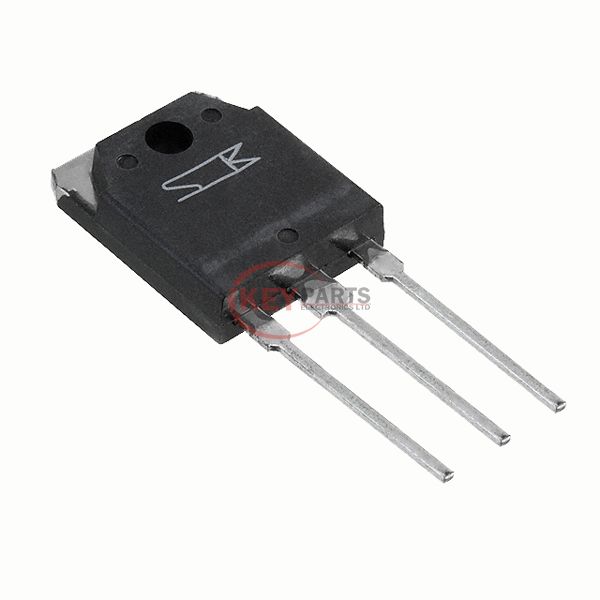

2SB1560

Enlarger

Lmages are for reference only See Product Specitications

Sanken Electric Co., Ltd. 2SB1560

Manufacturer :
Sanken Electric Co., Ltd.
Mfr. Part # :
2SB1560
Description
TRANS PNP DARL 150V 10A TO-3P
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SB1560 PDF
In Stock
1459
2SB1560 Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypePNP - Darlington
Current - Collector (Ic) (Max)10 A
Voltage - Collector Emitter Breakdown (Max)150 V
Vce Saturation (Max) @ Ib, Ic2.5V @ 7mA, 7A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce5000 @ 7A, 4V
Power - Max100 W
Frequency - Transition50MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply 2SB1560, use the request quote form to request 2SB1560 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SB1560. The price and lead time for 2SB1560 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SB1560. We look forward to working with you to establish long-term relations of cooperation.
