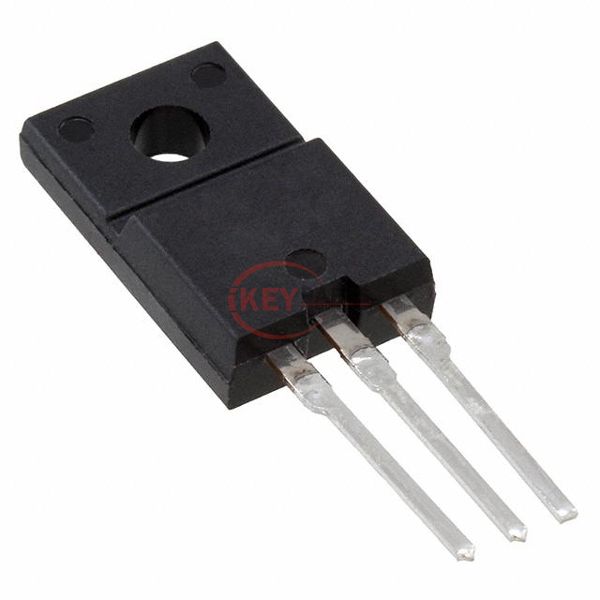

2SA1568

Enlarger

Lmages are for reference only See Product Specitications

Sanken Electric Co., Ltd. 2SA1568

Manufacturer :
Sanken Electric Co., Ltd.
Mfr. Part # :
2SA1568
Description
TRANS PNP 60V 12A TO220F
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SA1568 PDF
2SA1568 Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)12 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic350mV @ 300mA, 6A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 6A, 1V
Power - Max35 W
Frequency - Transition40MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F
Request Quote Now
Request Quote Now

We can supply 2SA1568, use the request quote form to request 2SA1568 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SA1568. The price and lead time for 2SA1568 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SA1568. We look forward to working with you to establish long-term relations of cooperation.
