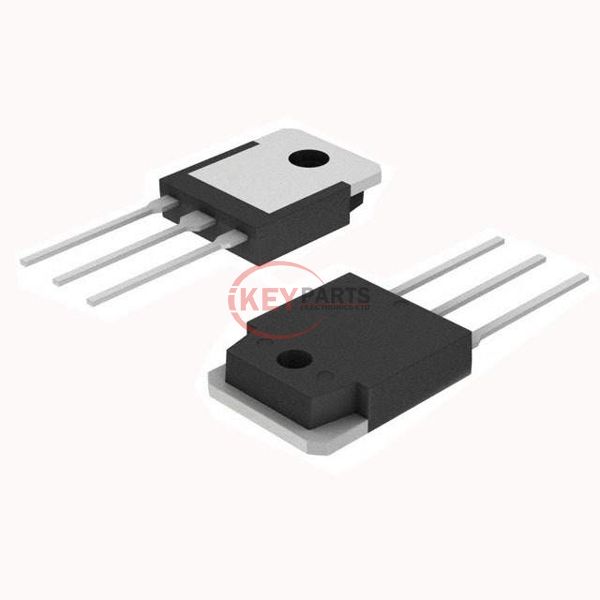

2SC3856

Enlarger

Lmages are for reference only See Product Specitications

Sanken Electric Co., Ltd. 2SC3856

Manufacturer :
Sanken Electric Co., Ltd.
Mfr. Part # :
2SC3856
Description
TRANS NPN 180V 15A TO-3P
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SC3856 PDF
2SC3856 Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)15 A
Voltage - Collector Emitter Breakdown (Max)180 V
Vce Saturation (Max) @ Ib, Ic2V @ 500mA, 5A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce50 @ 3A, 4V
Power - Max130 W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply 2SC3856, use the request quote form to request 2SC3856 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SC3856. The price and lead time for 2SC3856 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SC3856. We look forward to working with you to establish long-term relations of cooperation.
