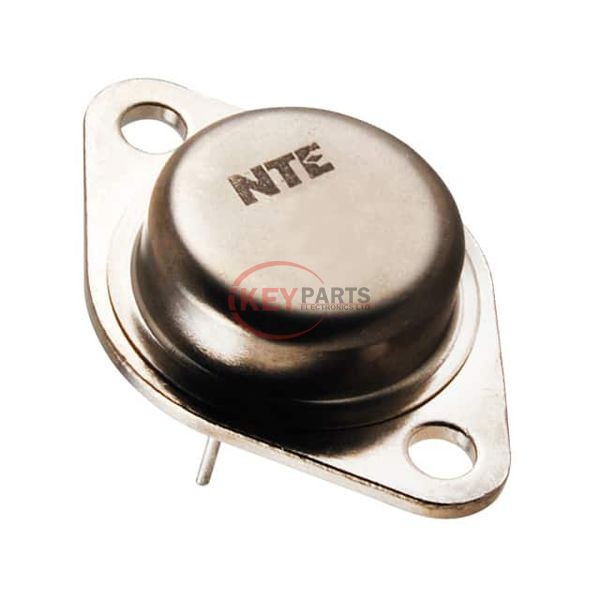

2N5683

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. 2N5683

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
2N5683
Description
TRANS PNP 60V 50A TO3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N5683 PDF
In Stock
438
2N5683 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)50 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic5V @ 10A, 50A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 25A, 2V
Power - Max300 W
Frequency - Transition2MHz
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-3
Request Quote Now
Request Quote Now

We can supply 2N5683, use the request quote form to request 2N5683 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N5683. The price and lead time for 2N5683 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N5683. We look forward to working with you to establish long-term relations of cooperation.
