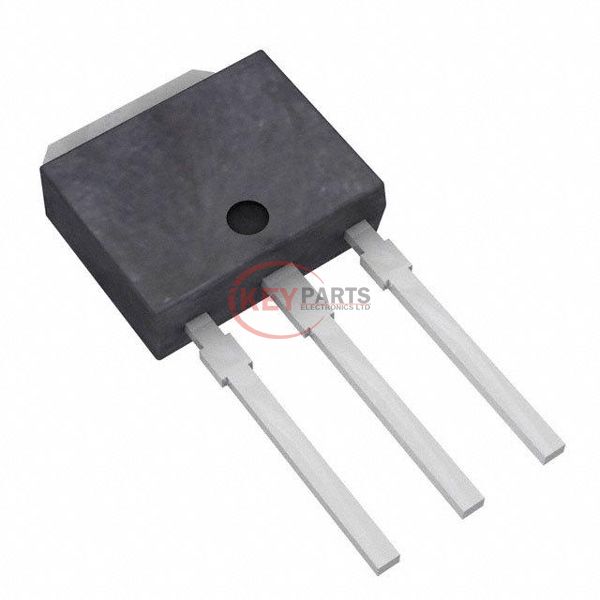

2SD1803T-E

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2SD1803T-E

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2SD1803T-E
Description
TRANS NPN 50V 5A TP
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SD1803T-E PDF
In Stock
427
2SD1803T-E Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic400mV @ 150mA, 3A
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
Power - Max1 W
Frequency - Transition180MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-251-3 Short Leads, IPak, TO-251AA
Supplier Device PackageTP
Request Quote Now
Request Quote Now

We can supply 2SD1803T-E, use the request quote form to request 2SD1803T-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD1803T-E. The price and lead time for 2SD1803T-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD1803T-E. We look forward to working with you to establish long-term relations of cooperation.
