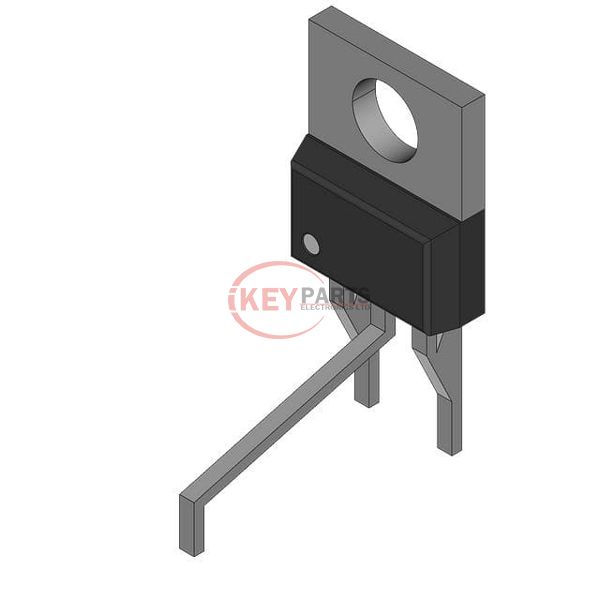

2SD1685G

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics 2SD1685G

Manufacturer :
Rochester Electronics
Mfr. Part # :
2SD1685G
Description
20 V, 5 A, LOW VCE(SAT), NPN SIN
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SD1685G PDF
2SD1685G Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 60mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce280 @ 500mA, 2V
Power - Max1.5 W
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-126ML
Request Quote Now
Request Quote Now

We can supply 2SD1685G, use the request quote form to request 2SD1685G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD1685G. The price and lead time for 2SD1685G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD1685G. We look forward to working with you to establish long-term relations of cooperation.
