ZXTN04120HP5TC

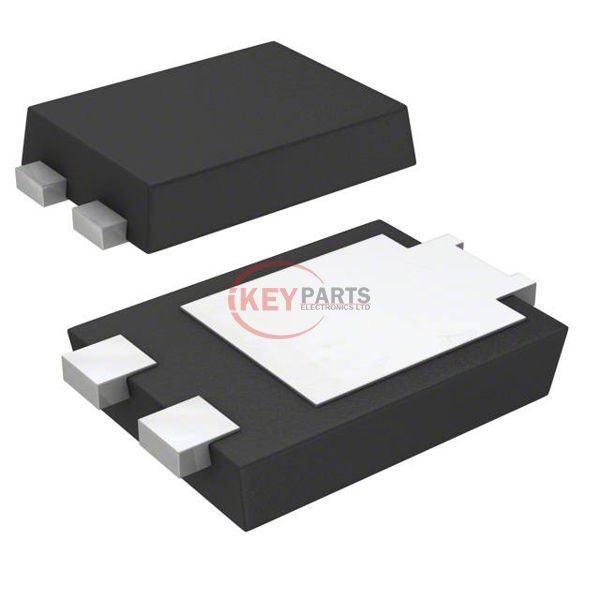

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) ZXTN04120HP5TC

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
ZXTN04120HP5TC
Description
TRANS NPN DARL 120V 1.5A PWRDI5
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ZXTN04120HP5TC PDF
In Stock
813
ZXTN04120HP5TC Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)120 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 1mA, 1A
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce2000 @ 1A, 5V
Power - Max3.2 W
Frequency - Transition150MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CasePowerDI™ 5
Supplier Device PackagePowerDI™ 5
Request Quote Now
Request Quote Now

We can supply ZXTN04120HP5TC, use the request quote form to request ZXTN04120HP5TC pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZXTN04120HP5TC. The price and lead time for ZXTN04120HP5TC depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZXTN04120HP5TC. We look forward to working with you to establish long-term relations of cooperation.
