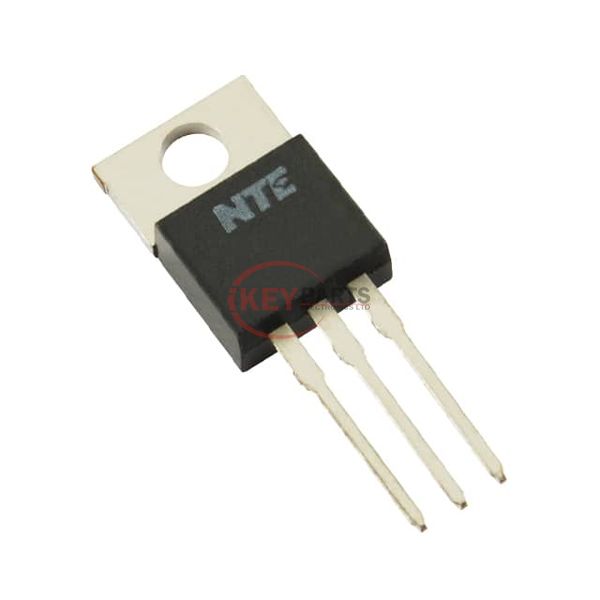

TIP152

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. TIP152

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
TIP152
Description
T-NPN SI-HIV DARLINGTON
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TIP152 PDF
In Stock
753
TIP152 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)10 A
Voltage - Collector Emitter Breakdown (Max)400 V
Vce Saturation (Max) @ Ib, Ic2V @ 250mA, 5A
Current - Collector Cutoff (Max)250µA
DC Current Gain (hFE) (Min) @ Ic, Vce150 @ 2.5A, 5V
Power - Max80 W
Frequency - Transition-
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack, Isolated Tab
Supplier Device PackageTO-220FN
Request Quote Now
Request Quote Now

We can supply TIP152, use the request quote form to request TIP152 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TIP152. The price and lead time for TIP152 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TIP152. We look forward to working with you to establish long-term relations of cooperation.
