DSA7503R0L

Enlarger

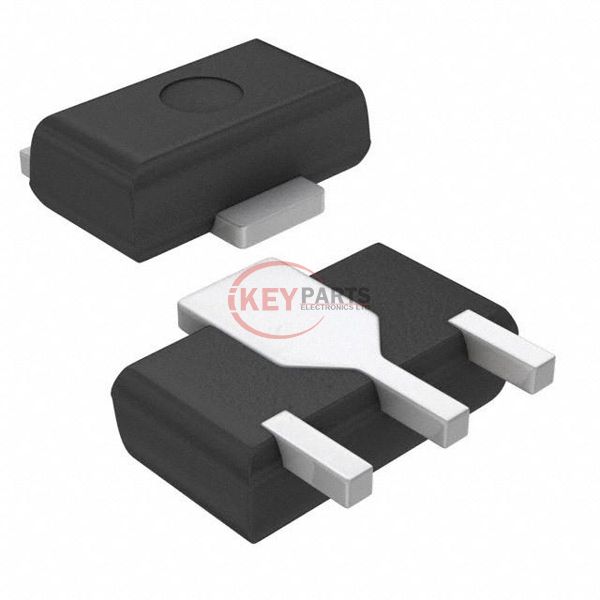

Lmages are for reference only See Product Specitications

Panasonic DSA7503R0L

Manufacturer :
Panasonic
Mfr. Part # :
DSA7503R0L
Description
TRANS PNP 20V 1A MINIP3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DSA7503R0L PDF
In Stock
840
DSA7503R0L Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusDiscontinued at Digi-Key
Transistor TypePNP
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 1A
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce130 @ 500mA, 2V
Power - Max1 W
Frequency - Transition200MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageMiniP3-F2-B
Request Quote Now
Request Quote Now

We can supply DSA7503R0L, use the request quote form to request DSA7503R0L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DSA7503R0L. The price and lead time for DSA7503R0L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DSA7503R0L. We look forward to working with you to establish long-term relations of cooperation.
