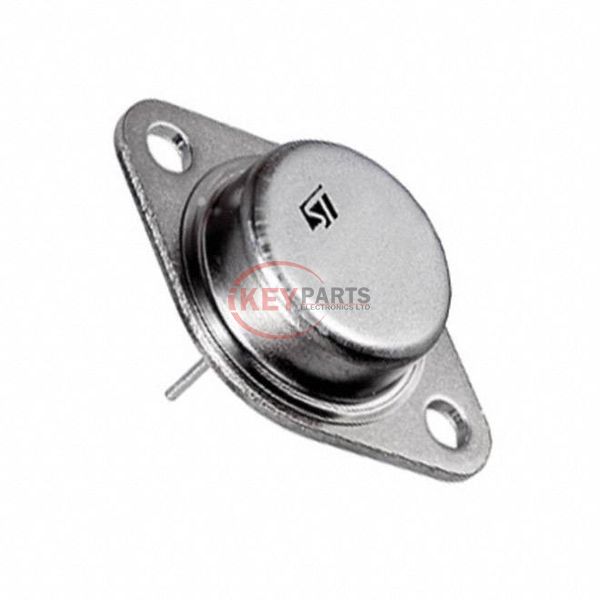

2N6284

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. 2N6284

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
2N6284
Description
TRANS NPN 100V 20A TO204
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N6284 PDF
In Stock
829
2N6284 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic2V @ 40mA, 10A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce750 @ 10A, 3V
Power - Max160 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-204 (TO-3)
Request Quote Now
Request Quote Now

We can supply 2N6284, use the request quote form to request 2N6284 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N6284. The price and lead time for 2N6284 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N6284. We look forward to working with you to establish long-term relations of cooperation.
