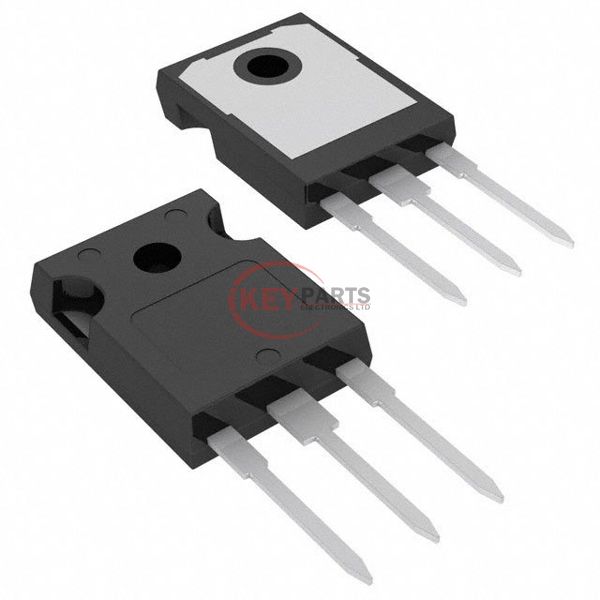

TIP141G

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor TIP141G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
TIP141G
Description
TRANS NPN DARL 80V 10A TO247-3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TIP141G PDF
In Stock
1671320
TIP141G Tech Specifications
Series-
PackageTube
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)10 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic3V @ 40mA, 10A
Current - Collector Cutoff (Max)2mA
DC Current Gain (hFE) (Min) @ Ic, Vce1000 @ 5A, 4V
Power - Max125 W
Frequency - Transition-
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247-3
Request Quote Now
Request Quote Now

We can supply TIP141G, use the request quote form to request TIP141G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TIP141G. The price and lead time for TIP141G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TIP141G. We look forward to working with you to establish long-term relations of cooperation.
