2SD2014

Enlarger

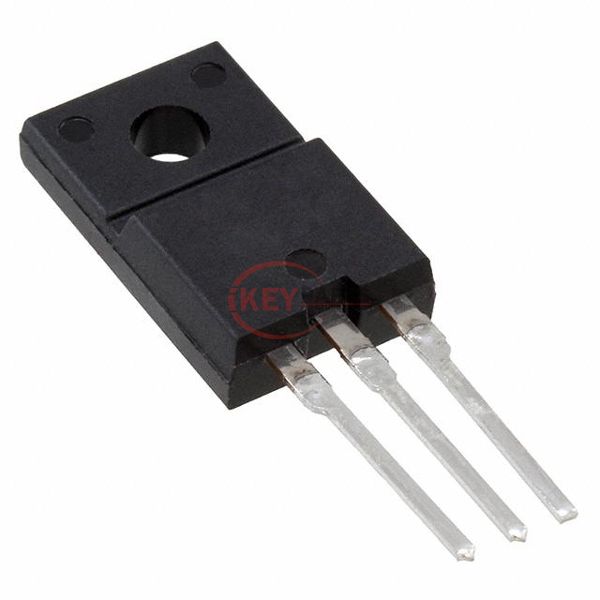

Lmages are for reference only See Product Specitications

Sanken Electric Co., Ltd. 2SD2014

Manufacturer :
Sanken Electric Co., Ltd.
Mfr. Part # :
2SD2014
Description
TRANS NPN DARL 80V 4A TO220F
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SD2014 PDF
In Stock
5049
2SD2014 Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic1.5V @ 3mA, 3A
Current - Collector Cutoff (Max)10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce2000 @ 3A, 2V
Power - Max25 W
Frequency - Transition75MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220F
Request Quote Now
Request Quote Now

We can supply 2SD2014, use the request quote form to request 2SD2014 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD2014. The price and lead time for 2SD2014 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD2014. We look forward to working with you to establish long-term relations of cooperation.
