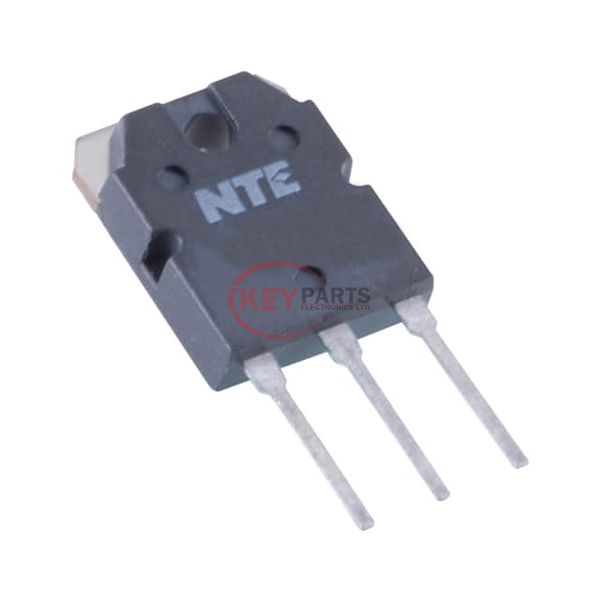

NTE2649

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE2649

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE2649
Description
TRANS NPN 180V 15A TO3P
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE2649 PDF
In Stock
363
NTE2649 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)15 A
Voltage - Collector Emitter Breakdown (Max)180 V
Vce Saturation (Max) @ Ib, Ic2.5V @ 10mA, 10A
Current - Collector Cutoff (Max)100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce5000 @ 10A, 4V
Power - Max130 W
Frequency - Transition70MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3P
Request Quote Now
Request Quote Now

We can supply NTE2649, use the request quote form to request NTE2649 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2649. The price and lead time for NTE2649 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2649. We look forward to working with you to establish long-term relations of cooperation.
