2SD09660Q

Enlarger

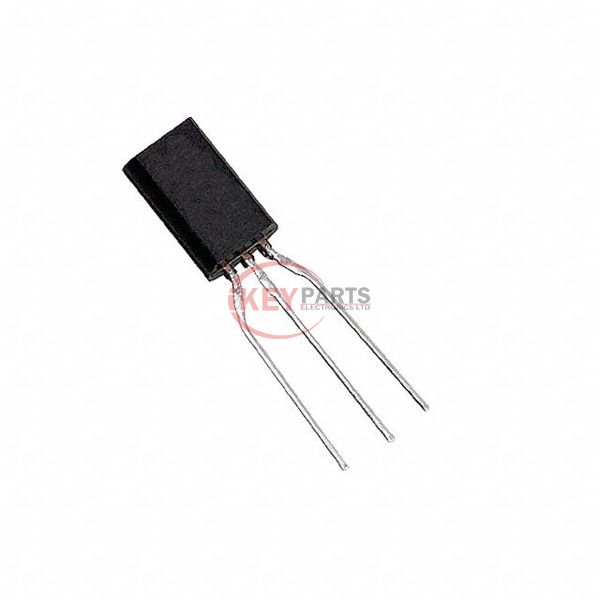

Lmages are for reference only See Product Specitications

Panasonic 2SD09660Q

Manufacturer :
Panasonic
Mfr. Part # :
2SD09660Q
Description
TRANS NPN 20V 5A TO-92L
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SD09660Q PDF
In Stock
149
2SD09660Q Tech Specifications
Series-
PackageBulk
Part StatusObsolete
Transistor TypeNPN
Current - Collector (Ic) (Max)5 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic1V @ 100mA, 3A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce230 @ 500mA, 2V
Power - Max1 W
Frequency - Transition150MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-226-3, TO-92-3 Long Body
Supplier Device PackageTO-92L-A1
Request Quote Now
Request Quote Now

We can supply 2SD09660Q, use the request quote form to request 2SD09660Q pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SD09660Q. The price and lead time for 2SD09660Q depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SD09660Q. We look forward to working with you to establish long-term relations of cooperation.
