JANTX2N6284

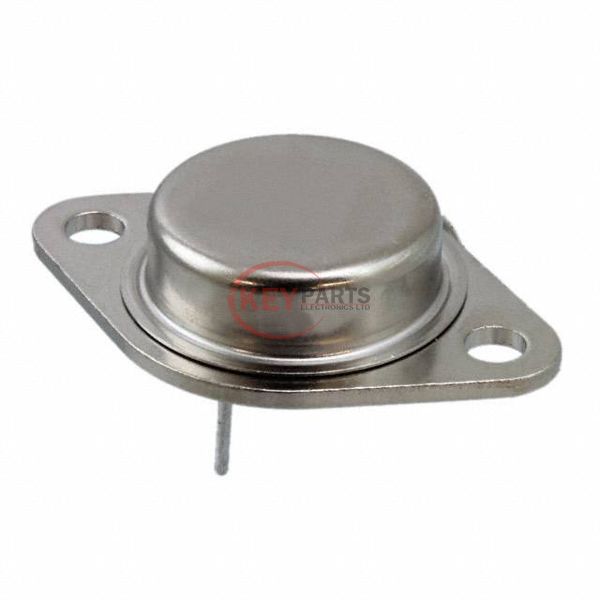

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology JANTX2N6284

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
JANTX2N6284
Description
TRANS NPN DARL 100V 20A TO-3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
JANTX2N6284 PDF
In Stock
686
JANTX2N6284 Tech Specifications
SeriesMilitary, MIL-PRF-19500/504
PackageBulk
Part StatusActive
Transistor TypeNPN - Darlington
Current - Collector (Ic) (Max)20 A
Voltage - Collector Emitter Breakdown (Max)100 V
Vce Saturation (Max) @ Ib, Ic3V @ 200mA, 20A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce1250 @ 10A, 3V
Power - Max175 W
Frequency - Transition-
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AA, TO-3
Supplier Device PackageTO-204AA (TO-3)
Request Quote Now
Request Quote Now

We can supply JANTX2N6284, use the request quote form to request JANTX2N6284 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number JANTX2N6284. The price and lead time for JANTX2N6284 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# JANTX2N6284. We look forward to working with you to establish long-term relations of cooperation.
