2SC3649S-TD-E

Enlarger

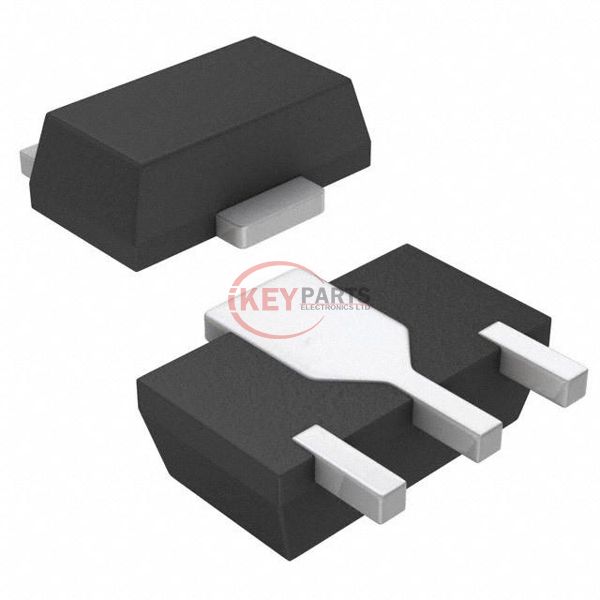

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2SC3649S-TD-E

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2SC3649S-TD-E
Description
TRANS NPN 160V 1.5A SOT89-3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2SC3649S-TD-E PDF
In Stock
629
2SC3649S-TD-E Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1.5 A
Voltage - Collector Emitter Breakdown (Max)160 V
Vce Saturation (Max) @ Ib, Ic450mV @ 50mA, 500mA
Current - Collector Cutoff (Max)1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 100mA, 5V
Power - Max500 mW
Frequency - Transition120MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackagePCP
Request Quote Now
Request Quote Now

We can supply 2SC3649S-TD-E, use the request quote form to request 2SC3649S-TD-E pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2SC3649S-TD-E. The price and lead time for 2SC3649S-TD-E depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2SC3649S-TD-E. We look forward to working with you to establish long-term relations of cooperation.
