Series | - | |
Package | Bag | |
Part Status | Active | |
Transistor Type | PNP | |
Current - Collector (Ic) (Max) | 16 A | |
Voltage - Collector Emitter Breakdown (Max) | 160 V | |
Vce Saturation (Max) @ Ib, Ic | 3.5V @ 2A, 16A | |
Current - Collector Cutoff (Max) | 750µA | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 8A, 2V | |
Power - Max | 125 W | |
Frequency - Transition | 1MHz | |
Operating Temperature | -65°C ~ 150°C (TJ) | |
Mounting Type | Through Hole | |
Package / Case | TO-3P-3, SC-65-3 | |
Supplier Device Package | TO-3PN |

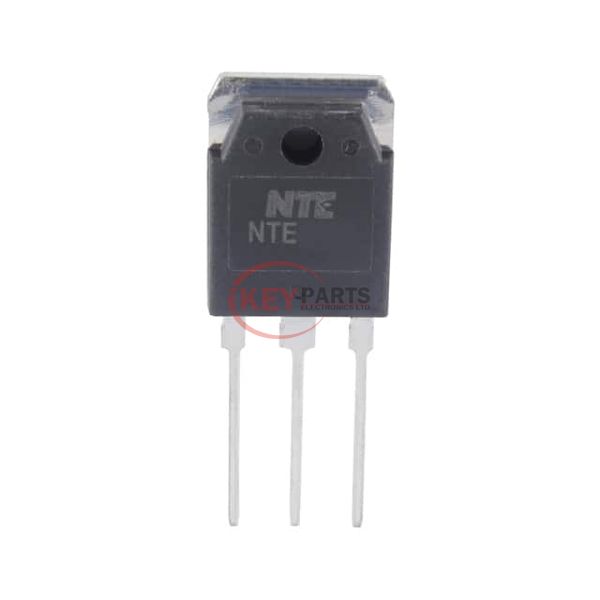

We can supply NTE2306, use the request quote form to request NTE2306 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2306. The price and lead time for NTE2306 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2306. We look forward to working with you to establish long-term relations of cooperation.
![]() |
