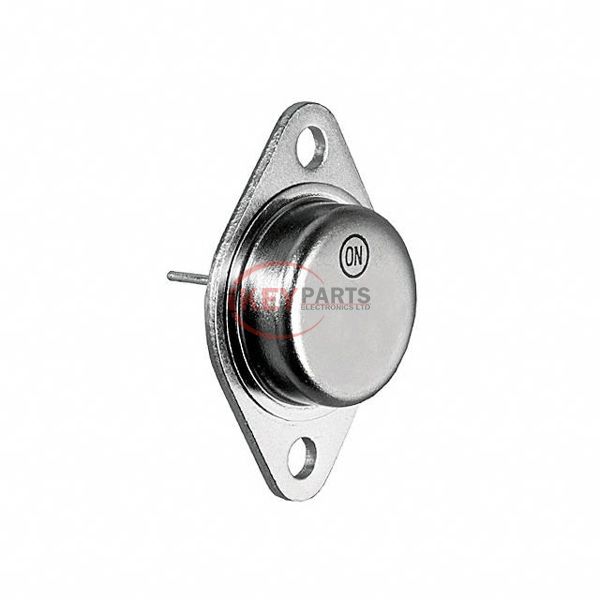

2N5686G

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor 2N5686G

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
2N5686G
Description
TRANS NPN 80V 50A TO3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N5686G PDF
In Stock
76500
2N5686G Tech Specifications
Series-
PackageTray
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)50 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic5V @ 10A, 50A
Current - Collector Cutoff (Max)1mA
DC Current Gain (hFE) (Min) @ Ic, Vce15 @ 25A, 2V
Power - Max300 W
Frequency - Transition2MHz
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-204AE
Supplier Device PackageTO-3
Request Quote Now
Request Quote Now

We can supply 2N5686G, use the request quote form to request 2N5686G pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N5686G. The price and lead time for 2N5686G depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N5686G. We look forward to working with you to establish long-term relations of cooperation.
