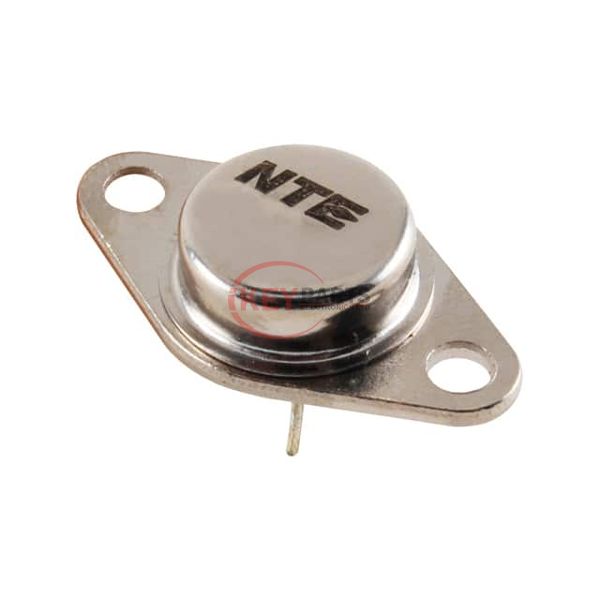

2N3054

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. 2N3054

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
2N3054
Description
TRANS NPN 55V 4A TO66
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N3054 PDF
In Stock
411
2N3054 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)55 V
Vce Saturation (Max) @ Ib, Ic6V @ 1A, 3A
Current - Collector Cutoff (Max)5mA
DC Current Gain (hFE) (Min) @ Ic, Vce25 @ 500mA, 4V
Power - Max25 W
Frequency - Transition3MHz
Operating Temperature-65°C ~ 200°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-213AA, TO-66-2
Supplier Device PackageTO-66
Request Quote Now
Request Quote Now

We can supply 2N3054, use the request quote form to request 2N3054 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N3054. The price and lead time for 2N3054 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N3054. We look forward to working with you to establish long-term relations of cooperation.
