2DB1424R-13

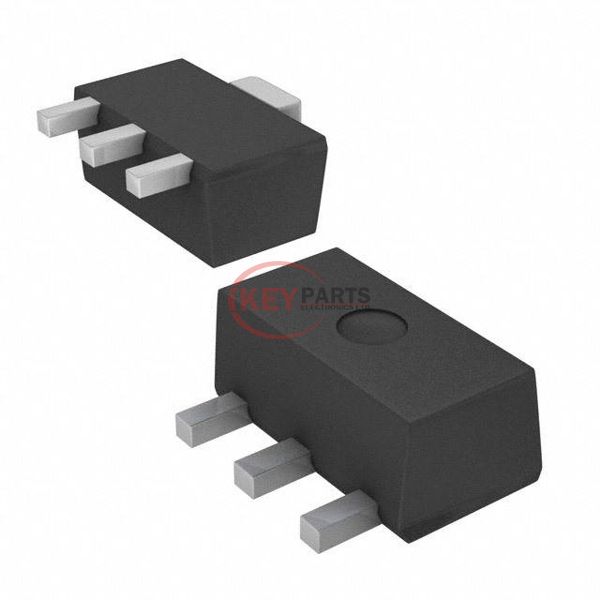

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) 2DB1424R-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
2DB1424R-13
Description
TRANS PNP 20V 3A SOT89-3
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2DB1424R-13 PDF
In Stock
907
2DB1424R-13 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)3 A
Voltage - Collector Emitter Breakdown (Max)20 V
Vce Saturation (Max) @ Ib, Ic500mV @ 100mA, 2A
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 100mA, 2V
Power - Max1 W
Frequency - Transition220MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
Request Quote Now
Request Quote Now

We can supply 2DB1424R-13, use the request quote form to request 2DB1424R-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2DB1424R-13. The price and lead time for 2DB1424R-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2DB1424R-13. We look forward to working with you to establish long-term relations of cooperation.
