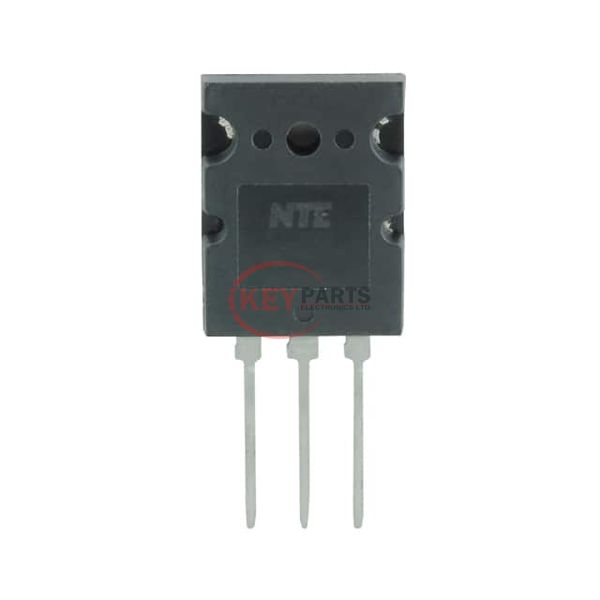

NTE2683

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE2683

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE2683
Description
TRANS PNP 160V 8A TO3PL
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE2683 PDF
NTE2683 Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypePNP - Darlington
Current - Collector (Ic) (Max)8 A
Voltage - Collector Emitter Breakdown (Max)160 V
Vce Saturation (Max) @ Ib, Ic3V @ 7mA, 7A
Current - Collector Cutoff (Max)100µA
DC Current Gain (hFE) (Min) @ Ic, Vce3500 @ 7A, 5V
Power - Max3.5 W
Frequency - Transition20MHz
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-3P-3, SC-65-3
Supplier Device PackageTO-3PL
Request Quote Now
Request Quote Now

We can supply NTE2683, use the request quote form to request NTE2683 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2683. The price and lead time for NTE2683 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2683. We look forward to working with you to establish long-term relations of cooperation.
