NTE5722

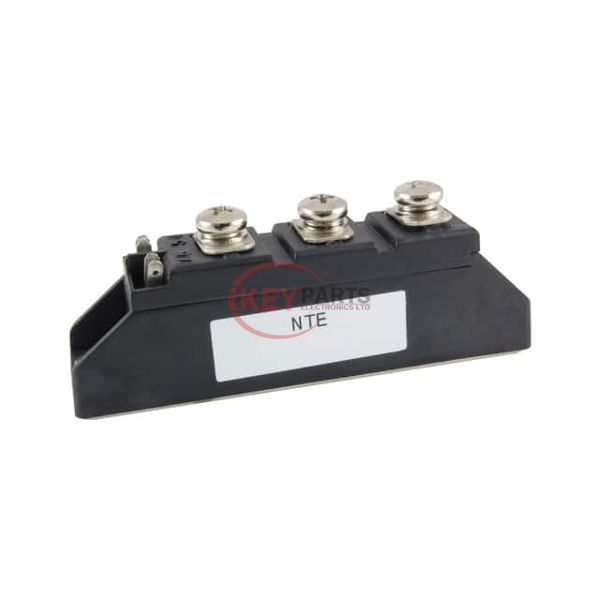

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5722

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5722
Description
SCR 1200V 90A MODULE
Catalog
Thyristors - SCRs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5722 PDF
In Stock
657
NTE5722 Tech Specifications
Series-
PackageBag
Part StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State1.2 kV
Current - On State (It (AV)) (Max)90 A
Current - On State (It (RMS)) (Max)141 A
Voltage - Gate Trigger (Vgt) (Max)2.5 V
Current - Gate Trigger (Igt) (Max)100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)2000A @ 60Hz
Current - Hold (Ih) (Max)100 mA
Operating Temperature-
Mounting TypeChassis Mount
Package / CaseModule
Request Quote Now
Request Quote Now

We can supply NTE5722, use the request quote form to request NTE5722 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5722. The price and lead time for NTE5722 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5722. We look forward to working with you to establish long-term relations of cooperation.
