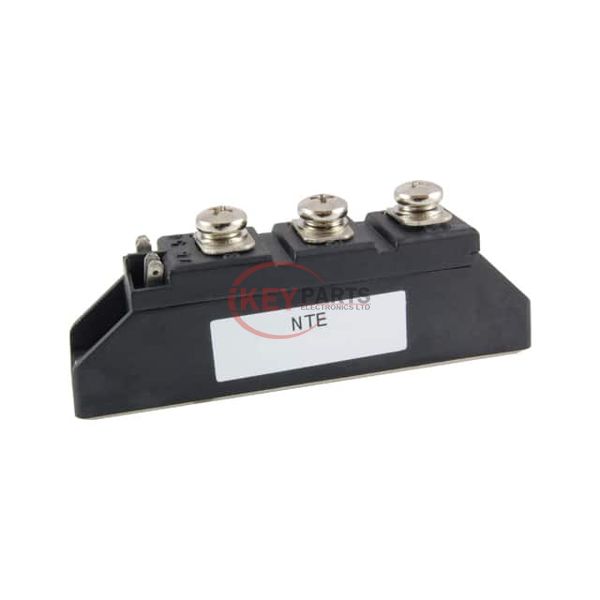

NTE5720

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5720

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5720
Description
SCR 1200V 90A MODULE
Catalog
Thyristors - SCRs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5720 PDF
In Stock
972
NTE5720 Tech Specifications
Series-
PackageBag
Part StatusActive
StructureSeries Connection - All SCRs
Number of SCRs, Diodes2 SCRs
Voltage - Off State1.2 kV
Current - On State (It (AV)) (Max)90 A
Current - On State (It (RMS)) (Max)-
Voltage - Gate Trigger (Vgt) (Max)3 V
Current - Gate Trigger (Igt) (Max)150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)1950A @ 60Hz
Current - Hold (Ih) (Max)-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeChassis Mount
Package / CaseModule
Request Quote Now
Request Quote Now

We can supply NTE5720, use the request quote form to request NTE5720 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5720. The price and lead time for NTE5720 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5720. We look forward to working with you to establish long-term relations of cooperation.
