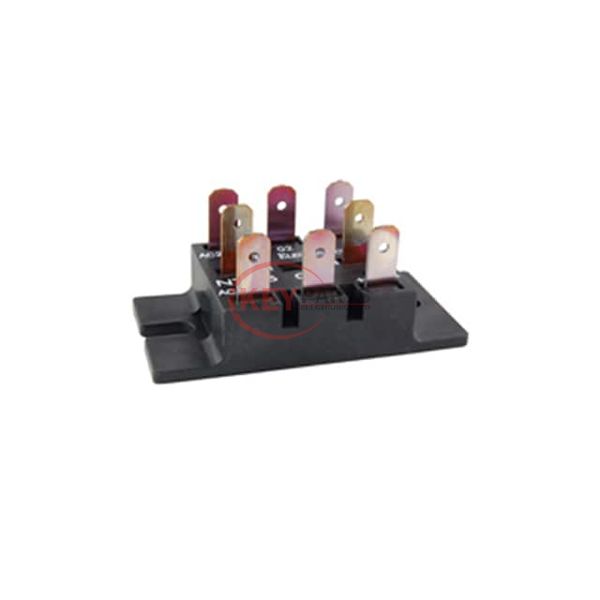

NTE5700

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE5700

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE5700
Description
INDUSTRIAL POWER MODULE
Catalog
Thyristors - SCRs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE5700 PDF
In Stock
422
NTE5700 Tech Specifications
Series-
PackageBag
Part StatusActive
StructureBridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes2 SCRs, 2 Diodes
Voltage - Off State1200 V
Current - On State (It (AV)) (Max)12.5 A
Current - On State (It (RMS)) (Max)17.5 A
Voltage - Gate Trigger (Vgt) (Max)2 V
Current - Gate Trigger (Igt) (Max)60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)357A, 375A
Current - Hold (Ih) (Max)100 mA
Operating Temperature-40°C ~ 125°C (TJ)
Mounting Type-
Package / CaseModule
Request Quote Now
Request Quote Now

We can supply NTE5700, use the request quote form to request NTE5700 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE5700. The price and lead time for NTE5700 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE5700. We look forward to working with you to establish long-term relations of cooperation.
