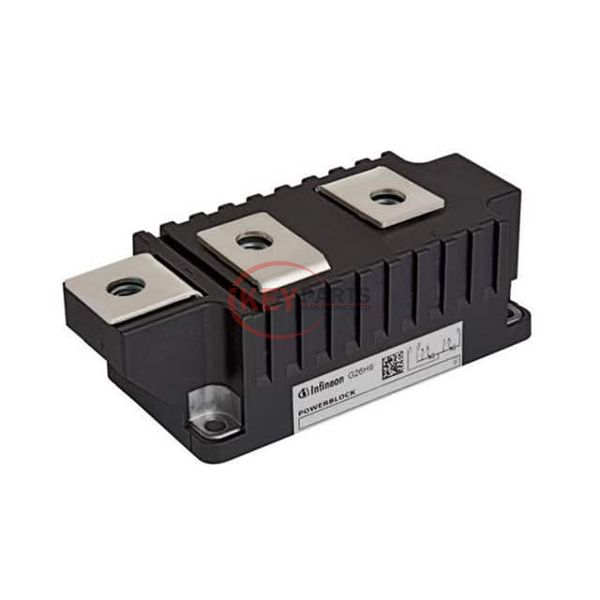

ETD540N22P60HPSA1

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) ETD540N22P60HPSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
ETD540N22P60HPSA1
Description
THYR / DIODE MODULE DK
Catalog
Thyristors - SCRs - Modules
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ETD540N22P60HPSA1 PDF
ETD540N22P60HPSA1 Tech Specifications
Series-
PackageTray
Part StatusActive
StructureSeries Connection - SCR/Diode
Number of SCRs, Diodes1 SCR, 1 Diode
Voltage - Off State2.2 kV
Current - On State (It (AV)) (Max)542 A
Current - On State (It (RMS)) (Max)700 A
Voltage - Gate Trigger (Vgt) (Max)2.2 V
Current - Gate Trigger (Igt) (Max)250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)16300A @ 50Hz
Current - Hold (Ih) (Max)300 mA
Operating Temperature-40°C ~ 135°C (TC)
Mounting TypeChassis Mount
Package / CaseModule
Request Quote Now
Request Quote Now

We can supply ETD540N22P60HPSA1, use the request quote form to request ETD540N22P60HPSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ETD540N22P60HPSA1. The price and lead time for ETD540N22P60HPSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ETD540N22P60HPSA1. We look forward to working with you to establish long-term relations of cooperation.
