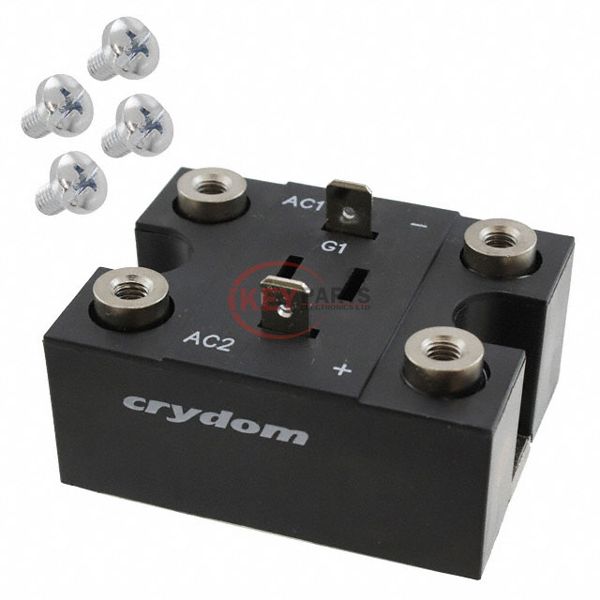

Series | - | |
Package | Bulk | |
Part Status | Active | |
Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) | |
Number of SCRs, Diodes | 2 SCRs, 2 Diodes | |
Voltage - Off State | 1.2 kV | |
Current - On State (It (AV)) (Max) | - | |
Current - On State (It (RMS)) (Max) | - | |
Voltage - Gate Trigger (Vgt) (Max) | 3 V | |
Current - Gate Trigger (Igt) (Max) | 150 mA | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 600A @ 60Hz | |
Current - Hold (Ih) (Max) | - | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Chassis Mount | |
Package / Case | Module |
We can supply M505015F, use the request quote form to request M505015F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M505015F. The price and lead time for M505015F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M505015F. We look forward to working with you to establish long-term relations of cooperation.
![]() |
