AP22814AW5-7

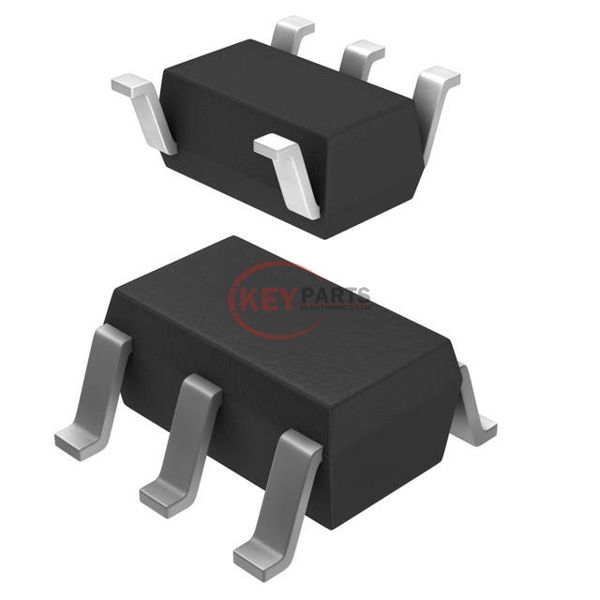

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) AP22814AW5-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
AP22814AW5-7
Description
IC PWR SWITCH P-CHAN 1:1 SOT25
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AP22814AW5-7 PDF
In Stock
41368
AP22814AW5-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch TypeUSB Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeP-Channel
InterfaceOn/Off
Voltage - Load2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)3A
Rds On (Typ)50mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge, Status Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-25
Package / CaseSC-74A, SOT-753
Request Quote Now
Request Quote Now

We can supply AP22814AW5-7, use the request quote form to request AP22814AW5-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AP22814AW5-7. The price and lead time for AP22814AW5-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AP22814AW5-7. We look forward to working with you to establish long-term relations of cooperation.
