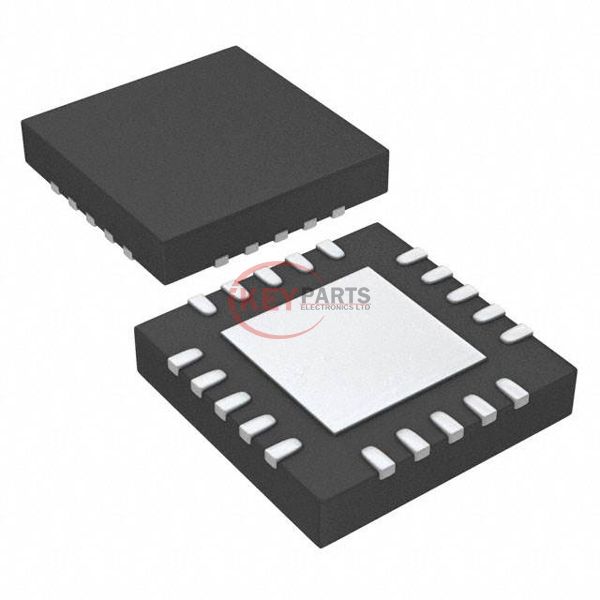

TPS2505B1RGWR

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments TPS2505B1RGWR

Manufacturer :
Texas Instruments
Mfr. Part # :
TPS2505B1RGWR
Description
IC PWR SWITCH N/P-CH 1:3 20VQFN
Catalog
PMIC - Power Distribution Switches, Load Drivers
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPS2505B1RGWR PDF
In Stock
1921
TPS2505B1RGWR Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Switch TypeUSB Switch
Number of Outputs3
Ratio - Input:Output1:3
Output ConfigurationHigh Side or Low Side
Output TypeN/P-Channel
InterfaceLogic
Voltage - Load1.8V ~ 5.25V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)1.1A
Rds On (Typ)80mOhm (Max)
Input TypeNon-Inverting
FeaturesBoost Converter, Status Flag
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package20-VQFN (5x5)
Package / Case20-VQFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply TPS2505B1RGWR, use the request quote form to request TPS2505B1RGWR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPS2505B1RGWR. The price and lead time for TPS2505B1RGWR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPS2505B1RGWR. We look forward to working with you to establish long-term relations of cooperation.
